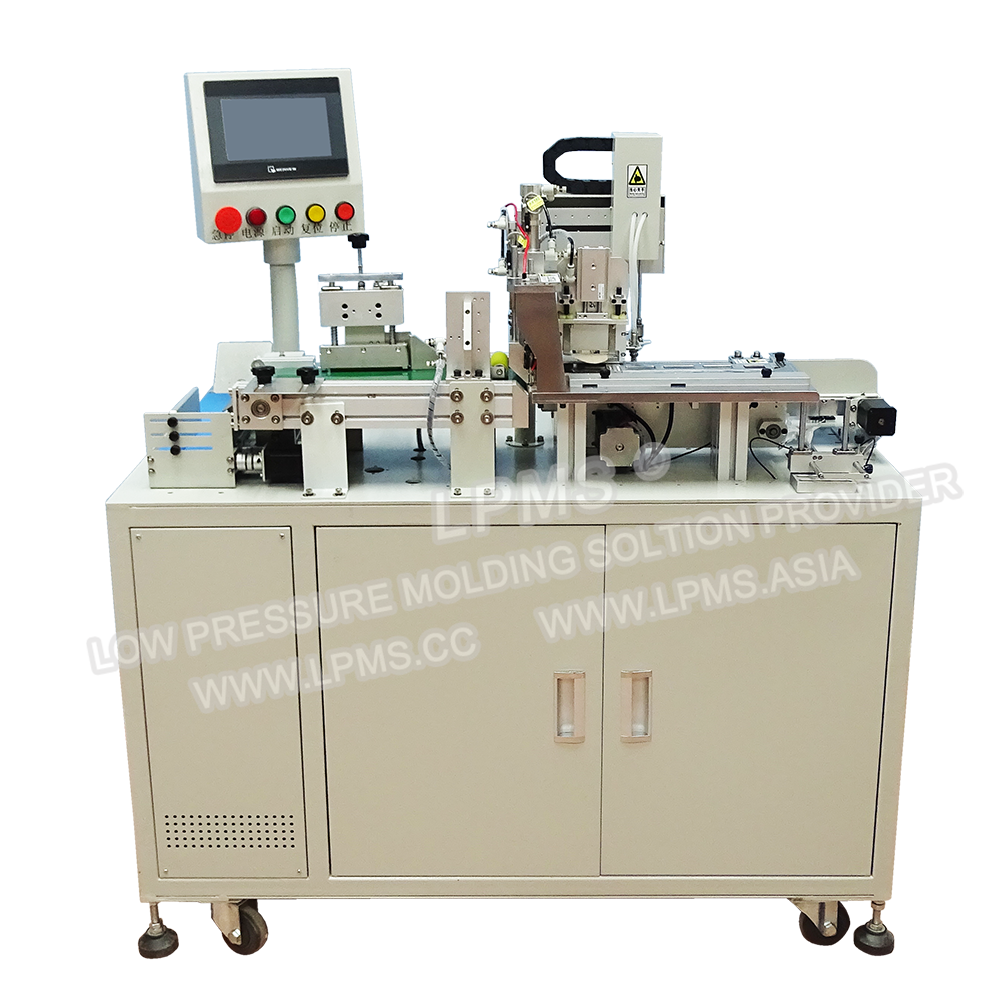

The machine inserts the battery to the plastic bag and pack it automatically.
The bag material can be PE, PO, PP, CPE.
Adopt suck disc to move the battery, avoid scratches during the movement.
The bag can be sealed or not sealed.
Compact design,low energy consumption, liable and high productivity.
Easy operation and maintenance.
Adopt PLC and touch screen HMI, auto diagnosticate system.
Bags punching function is optional.
Specification
Dimension Length | 30-90 mm |
Dimension Width | 30-90 mm |
Dimension Thickness | 2-12 mm |
Capacity | 2000-2800 Pcs / H |
Power input | 200-240 VAC / 1 Phase / 50 Hz |
Power | 0.5 Kw |
Air pressure requirement | 0.4~0.6 MPa |
Package dimension / weight | 1100*800*750mm / 150Kg |
