Table top machine and vertical injection.
Compact design with 1 liter melting tank integrated with machine.
Precise PID thermal control.
Designed specifically for PA adhesives.
Pneumatic cylinder clamping.
PLC control of timing and temperature.
Standard mold base self lock function is optional for large shot size.
Application
Our machines are engineered for low pressure molding applications. Using specialty resins to encapsulate delicate parts.
Applications including : automotive electronics, PCBA，coil, fiber-optic, LED lighting, wire, cable, etc.
Specification
Machine Size / Weight | 625 mm x 605 mm x 865 mm / 36 kg 24.61 in x 23.82 in x 34.06 in / 79 lbs |
Footprint | 625 mm x 605 mm | 24.61 in x 23.82 in |
Working Station Height | N/A |
Packing Size / Weight | 700 mm x 700 mm x 950 mm / 56 kg 27.56 in x 27.56 in x 37.40 in / 123 lbs |
Melting Tank Model & Q'ty | MT-01-200A x 1 |
Auto Feeding System | Optional |
Gun Model & Tip | LPMS-G02 x1 / 36.4° |
Heated Hose Model & Q'ty | N/A |
Electricity | 200-240VAC / 1 Phase / 50 or 60Hz |
Temperature Control Zones | 1 |
Temperature Range | Ambient up to 250°C / 485°F |
Max .Power | 1.8 Kw |
Min. Air Pressure | 0.5 MPa | 73 Psi |
Air Consumption | 1.77 ft3 / min |
Clamping | Air Cylinder |
Clamping Force | 0.4 T | 0.4 Tons |
Clamping Stroke | 25 mm | 0.98 in |
Control System | PLC+ 5 in HMI |
Safety Protection | Light curtain, Protective cover |
Mold Set Size | 100 mm x 80 mm x 60 mm / 3.7 kg (Stee) ,1.2 kg ( Aluminum ) 3.94 in x 3.15 in x 2.36 mm / 8.16 lbs (Steel),2.65 lbs(Aluminum) |
Max . Mold Set Size | 120 mm x 100 mm x 60 mm 4.72 in x 3.94 in x 2.36 in |
Max . Part Size | 20 mm x 20 mm x 5 mm 0.79 in x 0.79 in x 0.20 in" |

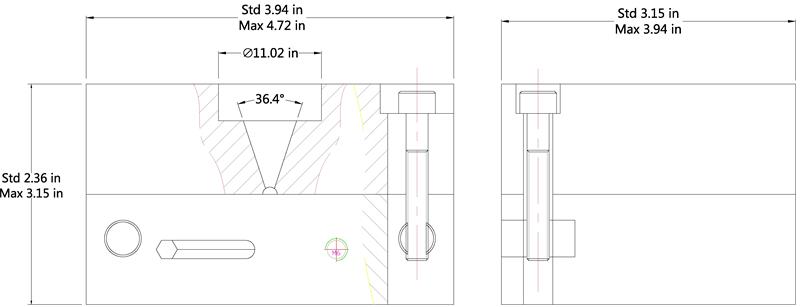

Dimension
Video
