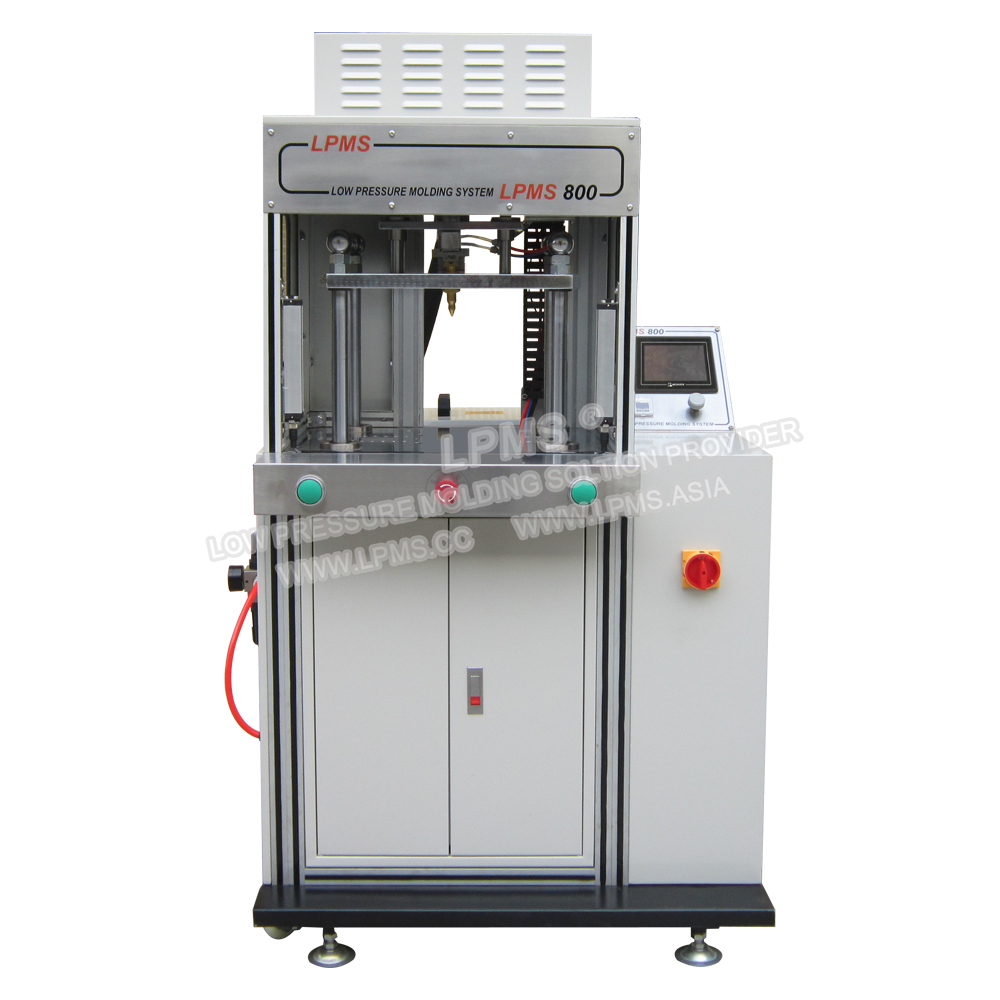

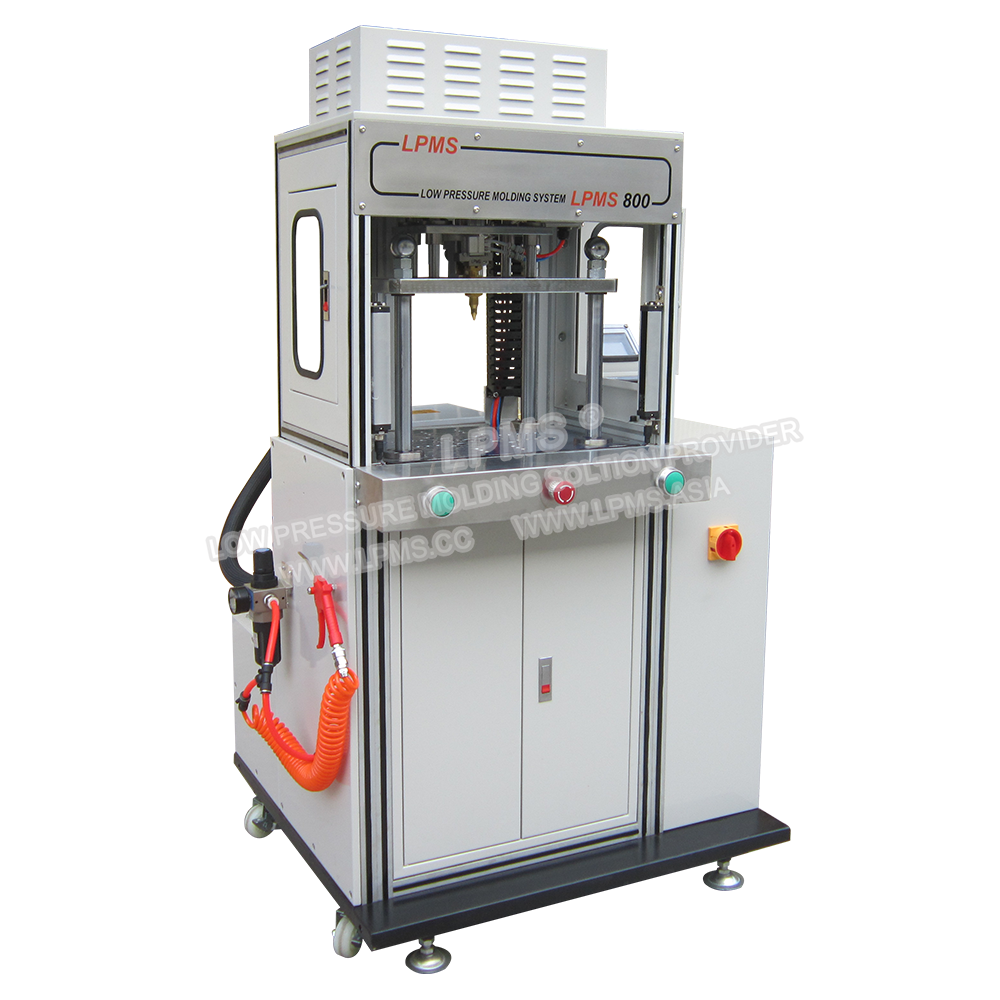

Vertical Injection Single Working Station Compact Machine

LPMS 800

Vertical Injection Single Working Station Compact Machine

Intuitive touch screen operation.
7 liter melting tank integrated into machine.
LPMS specially designed melt-on-demand tank can melt down the resin swiftly and evenly.

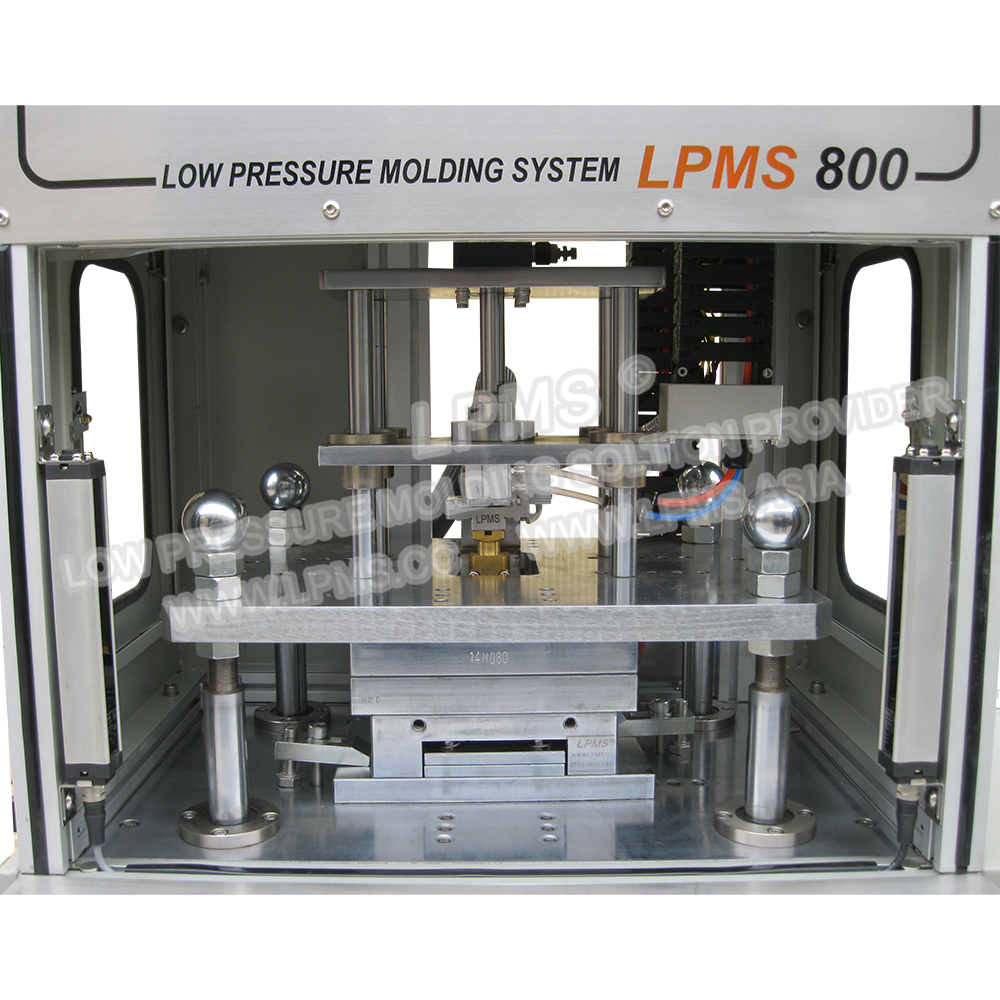

Linear scale it’s precise for mold clamping, does not need to adjust the reed switch position.
The gear pump is made of hard-wearing material，which is stable，injection volume accuracy ±0.1g，maximum shot size is 5g/s.
Injection pressure range 1~50kg, which is controlled by pneumatic safety valve. LPMS also have option like electronic safety valve, which means the injection pressure can be set more precisely from the PLC.
Three thermal control zones for precise melt control.
Over temperature alarming and automatic heating stop functions.
Light curtain and dual palm buttons for operator safety.
Mechanical ejection system and control for pneumatic ejection.

Application

LPMS? machines are engineered for low pressure molding, using specialty resins to encapsulate delicate parts, like automotive electronics, PCBA, coil, fiber-optic, LED lighting, cable, etc.

The benefit of vertical injection is that when smaller parts allow the cavity to be split into two or four cavities. This allows shorter runners and higher output per cycle. It’s suitable for multiple cavity mold for cable, wire harness, LED, etc.

Specification

Machine Size / Weight	39.8 in x 36.81 in x 65.35 in / 771 lbs
Work Station Height	36.22 in
Packing Size / Weight	43.31 in x 40.55 in x 70.87 in / 882 lbs
Melting Tank	Melt on demand 7 liter x 1
Auto Feeding System	Optional
Maximum shot size	5.8 g / RPM
Gun Model & Tip	LPMS-G08 x 1 / 36.4°
Heated Hose	1.6 m x 1
Electricity	200-240VAC / 1 Phase / 50Hz
Temperature Control Zones	3
Temperature Range	Ambient up to 250°C / 485°F
Max. Power	4.5 Kw
Pump Motor	120 W
Min. Air Pressure	0.5MPa \| 73 Psi
Air Consumption	3.5 ft3/min
Clamping	Air Cylinder
Clamping Force	Max. 1.2 Ton
Clamping Stroke	150 mm \| 5.91 in
Ejector	Air Cylinder
Ejector Force	2515 N
Ejector Stroke	25 mm
Control System	7 ”HMI , PLC controlled
Safety Protection	Light curtain, Emergency stop buttons

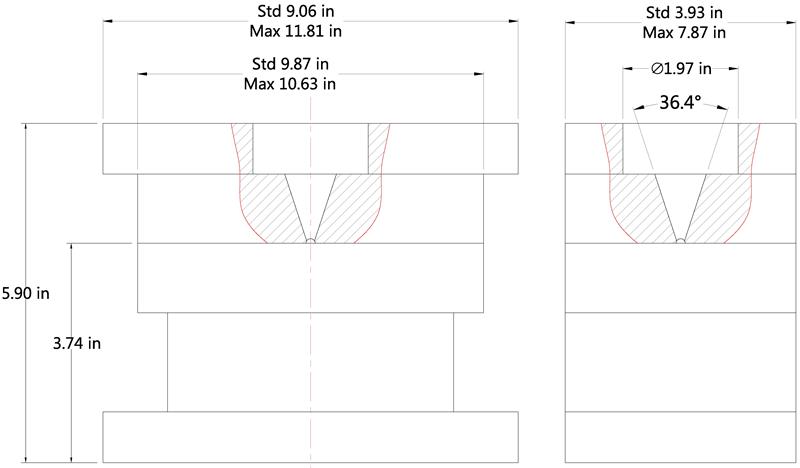

Std. Mold Set Size	9.06 in x 4.72 in x 5.91 in / 55.12 lbs
